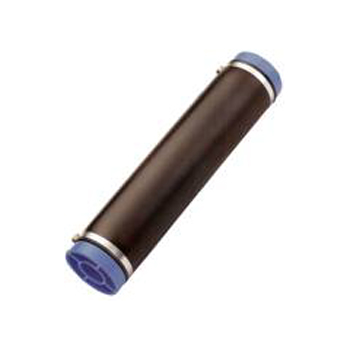

Fine Bubble Tube Air-Diffuser
Description
Specification

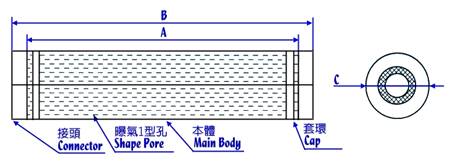

| Model | Material | Standard Flow Range | A (mm) |
B (mm) |
C (mm) |
Connector Size |
Weight (g) |
| PF-275 | Main Body : EPDM Cap : ABS Connector : ABS |
30 l /min. ~ 150 l /min. | 274 | 304 | 64 | PT-3/4" | 400 |
| PF-550 | 50 l/min. ~ 250 l /min. | 548 | 575 | 64 | PT-3/4" | 750 | |
| PF-620 | 150 l/min. ~ 250 l /min. | 620 | 650 | 64 | PT-3/4" | 940 | |
| PF-9100 MOQ:1000pcs |
200 l/min. ~ 400 l /min. | 1,000 | 1,040 | 95 | PT-11/4" | 3,180 |
Characteristic
- High efficiency of oxygen transfer from air to sewage.
- Simplified structure, lighted weight and easily installation.
- Main body made of EPDM provides longest durability.
Application
- Wastewater Treatment Plans
- Filtration Tank
- Aquaculture Farm
- Others
