Cage

Mainly Designed For Lake & Sea.
Be Able To Be Used For Harvest.
Resist Maximum to 6M Wave.
Still Very Strong And Working Well During Typhoon.
Having Good Feedback From The Biggest Tilapia Farm In The World And Other Governmental Projects.
Back

Description

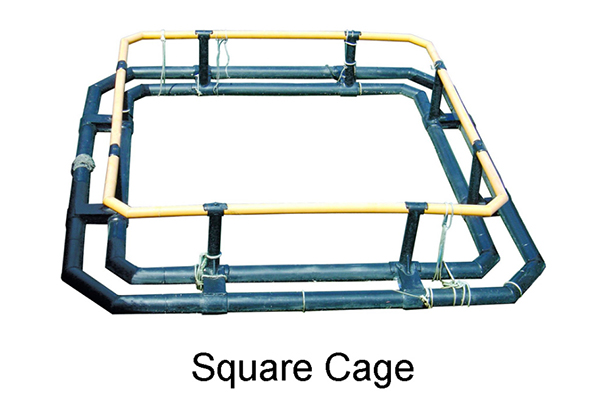

  • Square Cage
    Model Floating Pipe
    Size(mm)
    Cage Size
    (mxm)
    Cage
    Circumference
    (m)
    Stanchion
    QTY (set)
    Volume Per 1 m of Net Depth(m3) Gross
    Buoyancy(kgs)
    PSC-2503 250 3x3 12 6 9 1,031.8
    PSC-2504 250 4x4 16 8 16 1,326.6
    PSC-2506 250 6x6 24 12 36 1,916.2
    PSC-2509 250 9x9 36 18 81 2,800.6

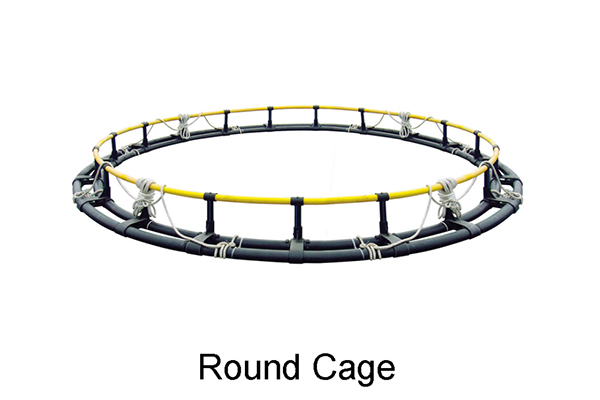

    Round Cage
    Model Floating Pipe
    Size(mm)
    Cage
    Diameter(m)
    Cage
    Circumference(m)
    Stanchion
    QTY (set)
    Volume Per 1 m of Net Depth(m3) Gross
    Buoyancy(kgs)
    PRC-2510 250 10 31.4 16 78.54 2,432.1
    PRC-2512 250 12 37.7 19 113.09 2,948.0
    PRC-2516 250 16 50.3 26 201.06 3,906.1
    PRC-2520 250 20 62.8 32 314.16 4,864.2
    Remarks:
    • Above suggested specifications are for reference only. Different cage dimension can be tailor-made.
    Function:
    • Marine cage farming system can be used in various water environments including lake, sea and river...etc.
    • Suitable for intensive farming.
    • Suitable for different species, such as Tilapia, Japanese Sea Bream, Goldlined Sea Bream, Cobia, Greater Amberjack, Blue-Banded Sea Perch, Spangled Emperor (Sand Snapper, Parrot-Fish), Snappers, Yellow-Wax Pampano, Orange-Spotted Grouper, Red Drum, Catfish, Striped bass, Bluegill sunfish, Crappie, Carp… etc.
    Characteristic
    • "One-Piece Injection Molded" HDPE 80 Bracket, extremely sturdy.
    • HDPE 80 Floating Pipe and HDPE 100 Handrail Pipe offer excellent ESCR (Environmental Stress Cracking Resistance) and resist deformation.
    • High carbon component, strong UV resistance ensures sound durability, low maintenance and investment cost.
    • Removable Handrail T Bar makes more easily assembling, simplified harvesting & efficient maintenance as well as resistant to corrosion.
    • Heavy duty standing pole. Bear heavier net weight.
    • All the "Round" and "Square" shape cages can be tailor-made.

    Remarks
    • The Manufacturer Reserves The Right To Change Specification Without Prior Notice.
    • Pioneer Grouphas not authorized any other company in "Taiwan" to be its representative or distributor, please note only "Pioneer Group" can offer you the " Authentic Pioneer" products !
    • Above Roots Blower Doesn’t Include Discharge Silencer、Flexible Joint & 90˚Elbow。

Feature

Improved Safety

  1. Reduced point load on the net.
  2. Full control while hoisting the net and minimum risk for propeller damages.
  3. Increased net volume at "High Energy" sites.

Good Environment Control

  1. Opens net meshes to its maximum creating less fouling and more flow.
  2. A "Constant" cylindrical net volume reduces the risk of wounds and stress during the bad weather or strong currents.

Highest Resistance of Wave

  1. Extended length between the bracket rings can resist up to 6m wave and suitable for 3 knots water current.
  2. UV resistance, molecule fission resistance under the cold weather and conforming to ASTM 1603 standard.

Stainless Steel Net Hook

  1. Made of # 316 Stainless Steel acid and alkali resistant.
  2. Fast delivery & easily assembling.

Square Cage Available

  1. Can be used for growing fingerlings, transporting or as harvesting cages.

Mooring System

  1. Consultancy & installation service is provided upon request.

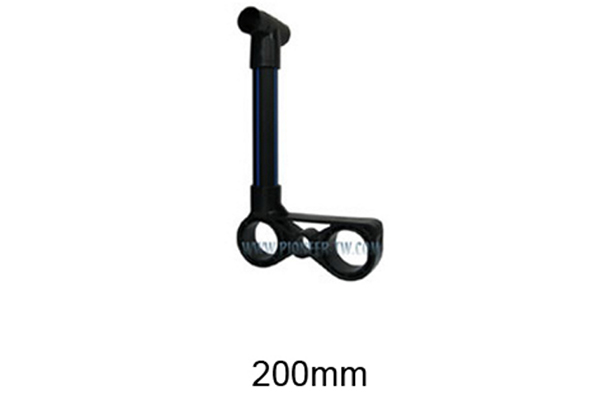

HDPE T Bar HDPE Bracket
(200mm)

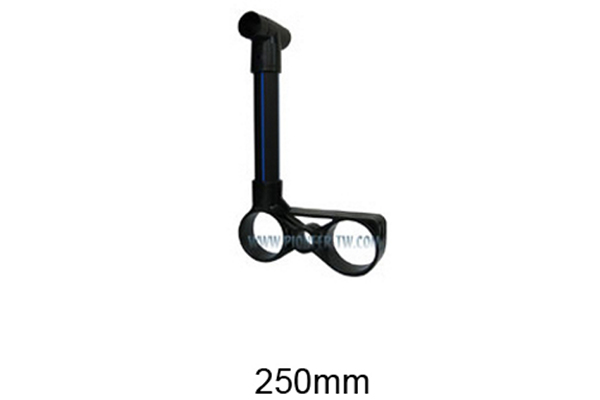

HDPE Bracket
(250mm)
HDPE 90º Elbow
(250mm)
HDPE 90º Elbow
(110mm)
HDPE Bracket
Holding Plate
HDPE Lock Mooring Diagram
(Ground Plan)

Mooring Diagram
(Cross-Section)
