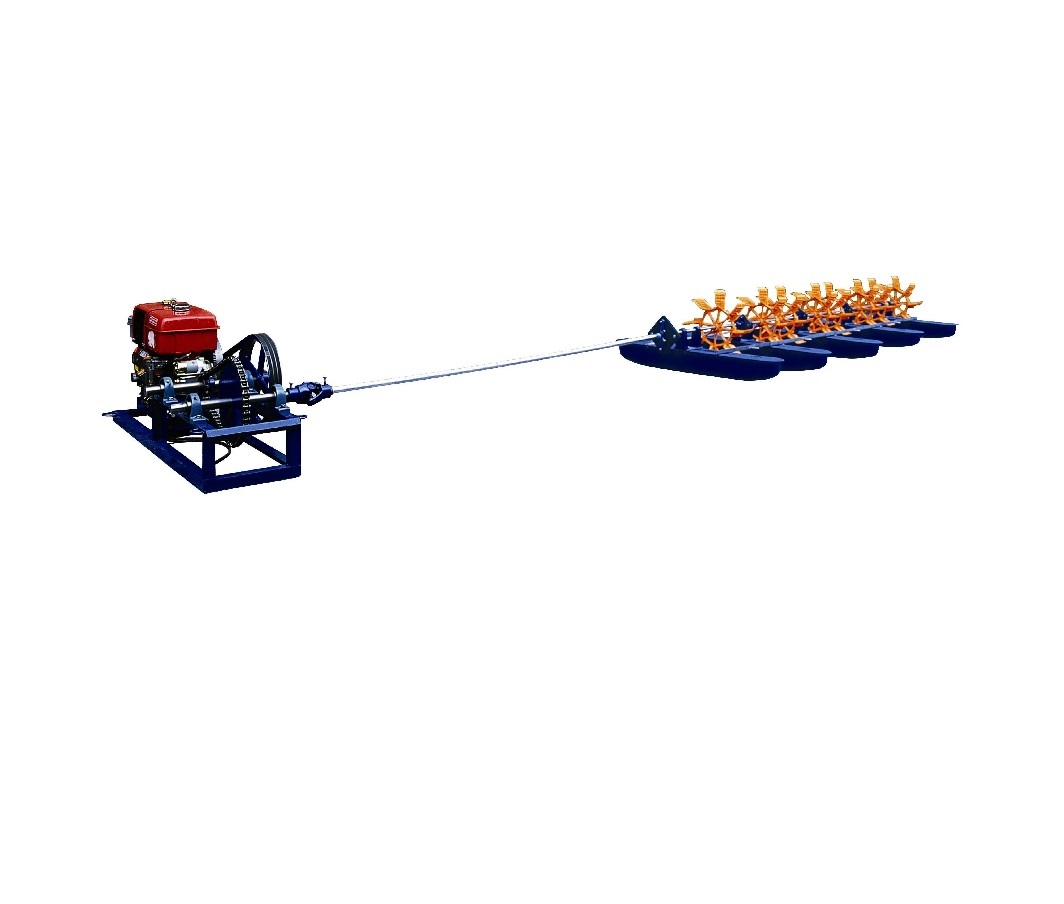

Diesel Engine Multi-Impeller Paddlewheel Aerator

Diesel Engine Multi-Impeller Paddlewheel Aerator



Model HP No.
of Impeller
Reducing Method Fabricated Dimension (cm) 20/40'
Container Load
Shore Part Water Part
PA-608 6 8 Gear Wheel 160x55x60 650x161x71 17/36 Units
PA-608R 6 8 Horizontal Reducer 95x55x60 650x161x71 18/37 Units
PA-808 8 8 Gear Wheel 160x55x60 650x161x71 17/36 Units
PA-808R 8 8 Horizontal Reducer 95x55x60 650x161x71 18/37 Units
PA-1210 12 10 Gear Wheel 160x55x60 800x161x71 15/32 Units
PA-1210R 12 10 Horizontal Reducer 95x55x60 800x161x71 15/33 Units


  • Providing substantial and stronger water current to improve pond water circulation and oxygenation.
  • With more impellers than normal model, which can benefit a large breeding area, thus, less power consumption and less investment cost.
  • Few aerator is needed, reduce maintenance and labor costs.
  • With diesel engine drive, especially suitable for area without electricity support and for emergency use.
  • "100% New Raw Materials" are guaranteed to be used in our products.

Spare Part:

High Quality Diesel Engine

  1. Extra big size of intake valve with high efficiency 10% more than ordinary design. The specific compression ratio is lifted higher than the compressive pressure, so it can have powerful output even under a heavy load.
  2. Adopt precise fuel oil pump with the best acceleration. Also has designed with vortex pre-burning room at high combustion power to save oil.
  3. Lubricating system, cylinder with a cover, using of closed type auto oiling lubrication and multi-filter to have the optimum lubricating effect and to prevent parts from being worn out.
  4. All components inside the engine are treated under strict quality control, therefore, it can provide excellent performance even for long period while running.
  5. A fully closed engine design with improved muffler, noiseless & quiet for running.

High Performance Nylon Impeller

  1. Replaceable paddle, lower maintenance cost.
  2. Toughness against corrosion and sunburn resistance.
  3. Professional designed paddle and best blade angle, substantial water splash, strong water current, and high oxygenation performance.
  4. The "Support or Anchor Part" of the blade on the rim is more strengthened and unique designed.

# 304 Stainless Steel Frame

  1. Made of # 304 stainless steel material.
  2. Sturdy and without deformation.
  3. High durability.

One Piece-Mold Nylon Bearing

  1. Made from 100% mew raw material.
  2. "One-Piece Mold" design, no "Pop-Up" problem.

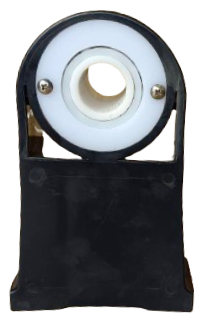

NEW~Energy-Efficient Bearing
  1. 7~11% energy saving comparing with traditional bearing
  2. Smooth rotation
  3. More durable & energy saving
  4. Equipped with two sets of deep groove ball bearings
  5. Easy to replace and maintenance
  6. Material : Industrial Plastic
  7. Patented model
  8. Reduce the force on the stainless steel shaft, prolong the service life of the motor and reducer

HDPE Float

  1. Made of 100% new HDPE material to optimize full ductility.
  2. Resist impact, acid-alkalinity and sun exposure.
  3. One-piece blow molded with absolutely no seeping.

Universal Joint
