SAA Series Paddlewheel Aerator

SAA Series Paddlewheel Aerator

Add to inquiry
Description

Specification:

Model HP Phase Voltage No. of Impeller Fabricated
Dimension (cm)		 20/40'
Container Load
SAA-111 1 1 100V ~ 240V 2 170x160x87 84/176 Units
3 220V ~ 480V
SAA-112 2 1 100V ~ 240V 4 170x220x87 56/116 Units
3 220V ~ 480V
SAA-308 3 3 220V ~ 480V 8 540x161x87 30/63 Units
SAA-510MR 5 3 220V ~ 480V 10





Characteristic:

  • Most Economical Price & Ideal Efficiency Design
  • Highest Water Circulation Performance & Oxygenation Rate
  • 100% New Raw Materials Guaranteed
  • Electricity Saving
  • Strictly Quality Control
  • 1 Year Guarantee Provided
  • Easy Installation & Maintenance



Note: Since May 2017 Our New 1 HP / 2 HP three-phase high efficiency electricity saving motors Will Be Launched.  Feel free to contact us if you are interested in our new product.

Spare Part:

High Quality Motor

  1. Expertise design for Aquaculture Industry.
  2. Top quality and above CNS stand.
  3. Strict Q.C. to ensure best quality and performance.

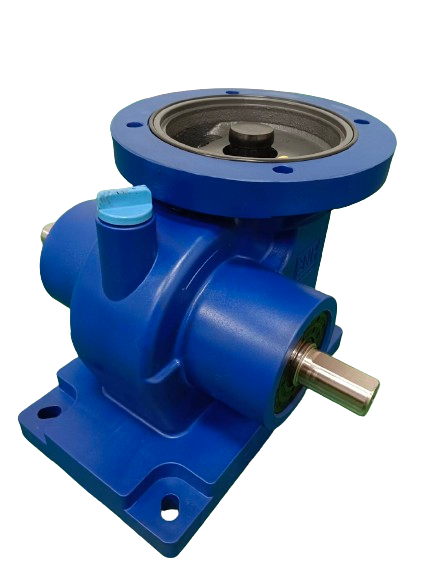

Low Friction Coefficient Reducer

  1. Updated high quality alloy components.
  2. Strong and durable "Worm Gear Wheel" (Above CNS Standard) and "Input Shaft".
  3. Smooth rotation with low resistance to decrease energy losses.

High Performance Impeller

  1. Replaceable paddle, lower maintenance cost.
  2. Toughness with corrosion and sunburn resistance.
  3. Professional designed paddle and best blade angle, substantial water splash, strong water current, and high oxygenation performance.

Reinforced Stainless Steel Shaft

  1. 100% made from stainless steel material.
  2. Sturdy and without deformation.
  3. High durability.

Stainless Steel Frame

  1. 100% made from stainless steel material.
  2. Sturdy and without deformation.
  3. High durability.

One Piece-Mold Bearing

  1. Made from 100% mew raw material.
  2. "One-Piece Mold" design, no "Pop-Up" problem.

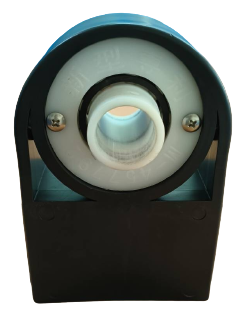

NEW~Energy-Efficient Bearing

  1. 7~11% energy saving comparing with traditional bearing
  2. Smooth rotation
  3. More durable & energy saving
  4. Equipped with two sets of deep groove ball bearings
  5. Easy to replace and maintenance
  6. Material : Industrial Plastic
  7. Patented model
  8. Reduce the force on the stainless steel shaft, prolong the service life of the motor and reducer

​​​​​​



HDPE Float

  1. Made from 100% new HDPE raw material to optimize full ductility.
  2. Resist impact, acid-alkalinity and sun exposure.
  3. One-Piece blow molded absolutely no seeping.

HDPE Motor Cover

Movable Joint
