Water Quality Sensors
PH sensor
ORP sensor
Total dissolved solids sensor
Temperature sensor
Digital DO Sensor
|
Model No. |
DO-FC4760D |
Replaceable diaphragms |
FCMS4760 |
|
Power Output |
12VDC/RS485 MODBUS RTU |
|
Measurement principle |
Fluorescence |
|
Case |
POM+ SS316L Stainless Steel |
|
IP |
IP68 |
|
Range |
0-20mg/L |
|
Basic Error |
‡1%F.S |
|
Pressure |
?0.3Mpa |
|
Temperature compensation |
NTC1 OK |
|
Temperature range |
0-50° C |
|
Use/storage temperature |
0-45°C |
|
Calibration |
Anaerobic water calibration and air fluorine calibration |
|
Connection method |
4 core cable |
|
Thread Length |
Standard 10 meters, can be extended to 100 meters |
|
Threaded Interface |
Upper NPT3/4' |
|
Application |
General purpose, rivers, lakes, drinking water, environmental protection, etc. |
|
Size |
220* ф 50mm |
|
Weight |
DO-FC4760D |
|
Installation method |
FCMS4760 |

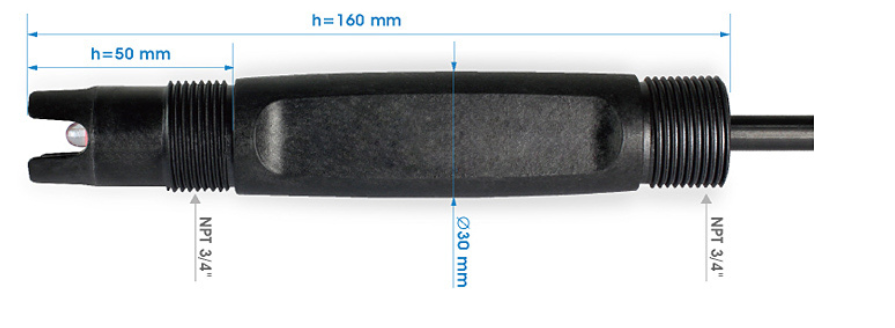

PH sensor
|
Model No. |
PH-FC1768D |
|
Application Environment |
Suitable for high-pressure pipelines and complex environments |
|
pH range |
0-14 |
|
Zero (PH) |
7.00 ‡ 0.25 |
|
Resolution |
0.01 pH |
|
Temperature range |
0 - 90 ° C |
|
Pressure |
+20 ~ -10 bar |
|
Case material |
PPS/PP |
|
Sensitive film number |
B11 |
|
Membrane resistance |
< 500 MQ |
|
Reference system |
SNEX Ag/ AgCl/ KCI |
|
Liquid junction |
SNEX |
|
Electrolyte Liquid |
|
|
Double salt bridge system |
|
|
Electrode cap |
NPT 3/4" |
|
cable length |
5m |
|
connector |
terminal |
|
Communication Interface/Protocol |
RS-485 Modus RTU |
|
power supply |
DC 9~24V |
|
output |
pH,mV Temperature |
|
IP level |
IP68 |

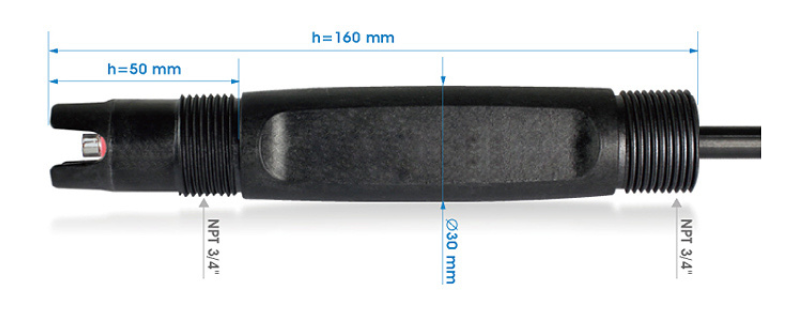

ORP Sensor
|
Model No. |
ORP-FC2768D |
|
Applicable environment |
Long time Non-poisoning OPR sensor in complex chemical environment |
|
pH range |
-1000mV -1000mV |
|
Zero (PH) |
1mV |
|
Resolution |
‡1mV |
|
Temperature range |
0 - 80 ° C |
|
Pressure |
O ~ -10 bar |
|
Case material |
PPS/PP |
|
Sensitive film number |
platinum |
|
Membrane resistance |
＜500 Mo |
|
Reference system |
SNEX Solid-liquid junction reference system, double salt bridge |
|
Liquid junction |
|
|
Electrolyte Liquid |
|
|
Double salt bridge system |
NPT 3/4" |
|
Electrode cap |
5m |
|
Cable length |
Terminal |
|
Connector |
RS-485 Modbus RTU |
|
Communication Interface/Protocol |
DC 9~24V |
|
Power supply |
mV, temperature |
|
Output |
IP68 |
|
IP |
NPT 3/4" |

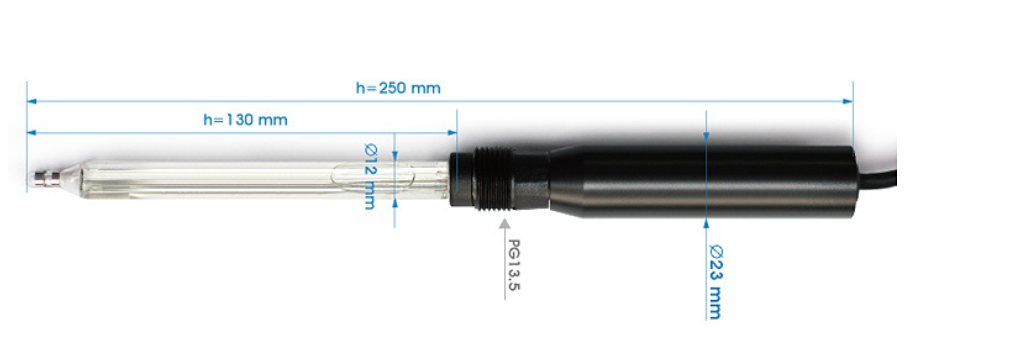

Chlorine Sensor
|
Model No. |
FC5530D5T |
|
Applicable environment |
|
|
Range |
0.00mg/L~ 20.00mg/L |
|
Resolution |
0.01mg/L |
|
Measurement accuracy |
‡0.02 mg/L |
|
Temperature range |
0 - 70°C |
|
Pressure |
0-6 bar |
|
Case material |
glass+PP+POM |
|
Ratio system |
Double salt bridge reference system, annular liquid junction |
|
Electrode cap (PP) |
PG13.5 |
|
Handle material |
POM |
|
Cable length |
5m |
|
Connector |
terminal |
|
Communication Interface/Protocol |
RS-485 Modbus RTU |
|
Power supply |
DC 9~24V |
|
Output |
free chlorine, temperature |
|
Degree of protection |
P68 |
|
Match |
A580 airtight flow cell use |
