High Head Dewatering

Back

Description

Features

  • Two features (Water delivery and extraction) in one design, it can be applied as a landed water pump by removing the strainer and connecting a check valve.
  • Water-cooling jacket design makes no overheat after long time operation, and impeller is designed regards to slicing concept for high water volume and high head.

Application

  • Lifting of well water and underground water, aqua farm, agriculture irrigation, hydraulic engineering and drainage of subway...etc.

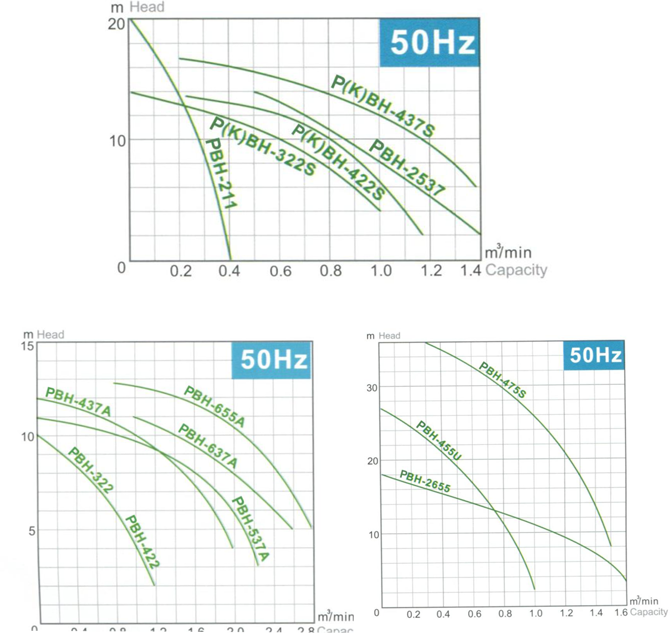

Performance




 50HZ         Above Head of 15 Meter Is Applicable                                                     RPM-3000

Model

Power
HP (kw)

Discharge
Inch

PH
φ

Pole

Standards

Max. Dia. mm

High
mm

Weight
(kg)

Head
(m)

Capacity
(m3/min)

PBH-211

1½ (1.1)

2”

1φ / 3φ

2

13

0.2

180

490

28

PBH-322S

3 (2.2)

3”

1φ / 3φ

2

10

0.6

230

590

45

*PKBH-322S

3 (2.2)

3”

1φ / 3φ

2

10

0.6

230

590

45

PBH-422S

3 (2.2)

4”

1φ / 3φ

2

10

0.8

230

590

45

*PKBH-422S

3 (2.2)

4”

1φ / 3φ

2

10

0.8

230

590

45

PBH-437S

5 (3.7)

4”

2

12

1.0

230

670

65

*PKBH-437S

5 (3.7)

4”

2

12

1.0

230

670

65

PBH-455U

7½ (5.5)

4”

2

21

0.4

270

710

70

PBH-2655

7½ (5.5)

6”

2

8

1.3

270

680

82

PBH-475S

10 (7.5)

4”

2

26

1.0

380

840

90

*Note: The Model PKBH-322S, PKBH-422S & PKBH-437S, Their Inside Material Is Different From PBH-322S/PBH-422S & PBH-437S



Below Head of 15 Meter Is Applicable (RPM-1500)

Model

Power
HP (kw)

Discharge
Inch

PH
φ

Pole

Standards

Max. Dia. mm

High
mm

Weight
(kg)

Head
(m)

Capacity
(m3/min)

PBH-322

3 (2.2)

3”

4

6

0.8

245

530

45

PBH-422

3 (2.2)

4”

4

6

0.8

245

530

45

PBH-437A

5 (3.7)

4”

4

8

1.5

270

680

70

PBH-537A

5 (3.7)

5”

4

8

1.6

270

680

70

PBH-637A

5 (3.7)

6”

4

8

2.0

290

780

75

PBH-655A

7½ (5.5)

6”

4

11

2.0

290

780

85

PBH-675

10 (7.5)

6”

4

11

2.0

365

840

122

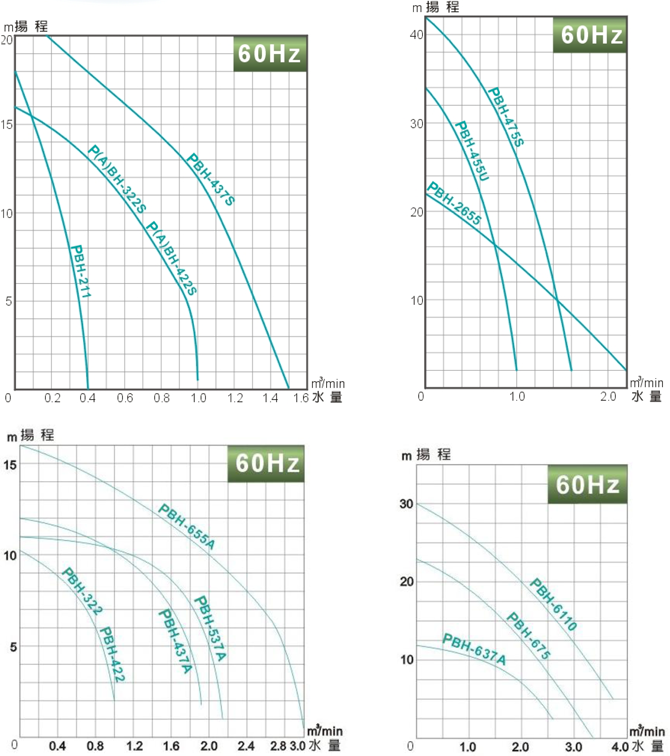

 60HZ         Above Head of 15 Meter Is Applicable                                                      RPM-3600

Model

Power
HP (kw)

Discharge
Inch

PH
φ

Pole

Standards

Max. Dia. mm

High
mm

Weight
(kg)

Head
(m)

Capacity
(m3/min)

PBH-211

1½ (1.1)

2”

1φ / 3φ

2

12

0.2

180

490

28

PBH-322S

3 (2.2)

3”

1φ / 3φ

2

12

0.5

245

530

45

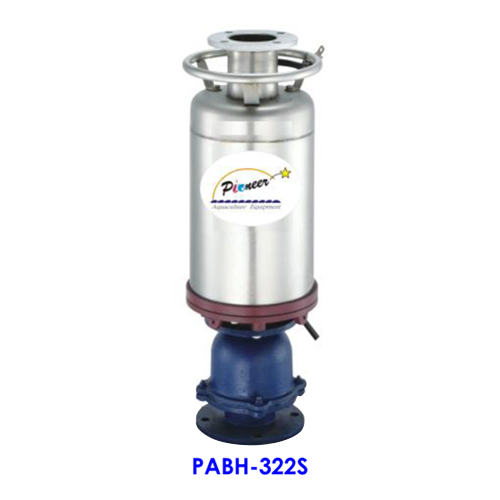

*PABH-322S

3 (2.2)

3”

1φ / 3φ

2

12

0.5

245

530

45

PBH-422S

3 (2.2)

4”

1φ / 3φ

2

12

0.5

245

530

45

*PABH-422S

3 (2.2)

4”

1φ / 3φ

2

12

0.5

245

530

45

PBH-437S

5 (3.7)

4”

2

12

1.0

270

680

65

PBH-455U

7½ (5.5)

4”

2

22

0.6

270

680

70

PBH-2655

7½ (5.5)

6”

2

10

1.4

270

815

82

PBH-475S

10 (7.5)

4”

2

26

1.0

380

840

90

 50HZ          Above Head of 15 Meter Is Applicable                                                          RPM-3000

Model

Power
HP (kw)

Discharge
Inch

PH
φ

Pole

Standards

Max. Dia. mm

High
mm

Weight
(kg)

Head
(m)

Capacity
(m3/min)

PBH-211

1½ (1.1)

2”

1φ / 3φ

2

13

0.2

180

490

28

PBH-322S

3 (2.2)

3”

1φ / 3φ

2

10

0.6

230

590

45

*PKBH-322S

3 (2.2)

3”

1φ / 3φ

2

10

0.6

230

590

45

PBH-422S

3 (2.2)

4”

1φ / 3φ

2

10

0.8

230

590

45

*PKBH-422S

3 (2.2)

4”

1φ / 3φ

2

10

0.8

230

590

45

PBH-437S

5 (3.7)

4”

2

12

1.0

230

670

65

*PKBH-437S

5 (3.7)

4”

2

12

1.0

230

670

65

PBH-455U

7½ (5.5)

4”

2

21

0.4

270

710

70

PBH-2655

7½ (5.5)

6”

2

8

1.3

270

680

82

PBH-475S

10 (7.5)

4”

2

26

1.0

380

840

90

*Note: The Model PKBH-322S, PKBH-422S & PKBH-437S, Their Inside Material Is Different From PBH-322S/PBH-422S & PBH-437S



Below Head of 15 Meter Is Applicable (RPM-1500)



Model

Power
HP (kw)

Discharge
Inch

PH
φ

Pole

Standards

Max. Dia. mm

High
mm

Weight
(kg)

Head
(m)

Capacity
(m3/min)

PBH-322

3 (2.2)

3”

4

6

0.8

245

530

45

PBH-422

3 (2.2)

4”

4

6

0.8

245

530

45

PBH-437A

5 (3.7)

4”

4

8

1.5

270

680

70

PBH-537A

5 (3.7)

5”

4

8

1.6

270

680

70

PBH-637A

5 (3.7)

6”

4

8

2.0

290

780

75

PBH-655A

7½ (5.5)

6”

4

11

2.0

290

780

85

PBH-675

10 (7.5)

6”

4

11

2.0

365

840

122



60HZ

Above Head of 15 Meter Is Applicable

RPM-3600



Model

Power
HP (kw)

Discharge
Inch

PH
φ

Pole

Standards

Max. Dia. mm

High
mm

Weight
(kg)

Head
(m)

Capacity
(m3/min)

PBH-211

1½ (1.1)

2”

1φ / 3φ

2

12

0.2

180

490

28

PBH-322S

3 (2.2)

3”

1φ / 3φ

2

12

0.5

245

530

45

*PABH-322S

3 (2.2)

3”

1φ / 3φ

2

12

0.5

245

530

45

PBH-422S

3 (2.2)

4”

1φ / 3φ

2

12

0.5

245

530

45

*PABH-422S

3 (2.2)

4”

1φ / 3φ

2

12

0.5

245

530

45

PBH-437S

5 (3.7)

4”

2

12

1.0

270

680

65

PBH-455U

7½ (5.5)

4”

2

22

0.6

270

680

70

PBH-2655

7½ (5.5)

6”

2

10

1.4

270

815

82

PBH-475S

10 (7.5)

4”

2

26

1.0

380

840

90
